| FPE温控阀采用石蜡受热膨胀原理，半液体状态的石蜡在较小的温度范围内具有较高的膨胀率。自力式温控阀芯将根据受热状态在衬套内运动，从而达到调节流量的效果。所有FPE温控阀的控制温度都是预先设定好的，因此出厂后无需任何调节。本产品适用温度范围广，在冷却和润滑系统中有着极其广泛的应用。 |
|
FPE温控阀产品 |
|
| |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
| *0750 |
AL, B |
3/4" NPT |
| *0750D1 |
AL, B |
3/4" NPT low flow |
| *0750J12 |
AL, B |
SAE 12 3/4" |
| *0750J12D1 |
AL, B |
3/4" SAE 12 low flow |
| *0752 |
AL, B |
1/2" NPT |
| *0752D1 |
AL, B |
1/2" NPT low flow |
| *0750JW |
AL, B |
3/4" NPT Two Way |
| *0750JWJ12 |
AL, B |
SAE 12 3/4" Two Way |
将*替换为阀体材料类型：AL=铝，B=青铜 |

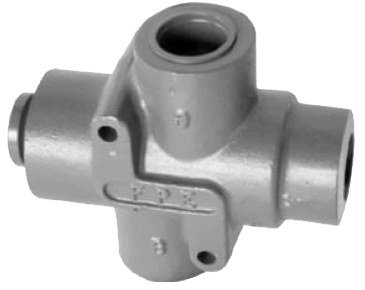

| 0750型 |
|
0750型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*1010
*1010B |
A, AL, B, D, S, SS |
1" NPT 1" BSPT |
*1110
*1110B |
A, AL, B, D, S, SS |
3/4" NPT 3/4" BSPT |
*1210
*1210B |
A, AL, B, D, S, SS |
1/2" NPT 1/2" BSPT |
| *1010J8 |
A, AL, B, D, S, SS |
SAE 8 1/2" |
| *1010J12 |
A, AL, B, D, S, SS |
SAE 12 3/4" |
| *1010J16 |
A, AL, B, D, S, SS |
SAE 16 1" |
| *1010A |
A, AL, B, D, S, SS |
1" BSPP/JIS Rp |
| *1110A |
A, AL, B, D, S, SS |
3/4" BSPP/JIS RP |
| *1210A |
A, AL, B, D, S, SS |
1/2" BSPP/JIS Rp |
| *1410A |
A, AL, B, D, S, SS |
1 1/4" BSPP/JIS Rp |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

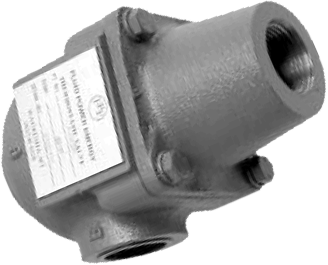

| 1010/1110/1210型 |
|
1010/1110/1210型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
| *1011 |
"A, AL, B, D, S, SS" |
1" NPT |
| *1111 |
"A, AL, B, D, S, SS" |
3/4" NPT |
| *1211 |
"A, AL, B, D, S, SS" |
1/2" NPT |
| *1411 |
"A, AL, B, D, S, SS" |
1 1/4" NPT |
| *1511 |
"A, AL, B, D, S, SS" |
1 1/2" NPT |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

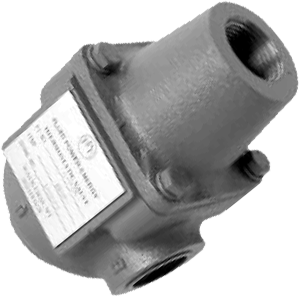

| 1011型 |
|
1011型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*1530 x
*1530M |
"A, AL, B, D, S, SS" |
1 1/2" NPT |
*1530J16
*1530MJ16 |
"A, AL, B, D, S, SS" |
SAE 16 1 5/16" - 12 |
*1530J20
*1530MJ30 |
"A, AL, B, D, S, SS" |
SAE 20 1 5/8" - 12 |
*1530J24
*1530MJ24 |
"A, AL, B, D, S, SS" |
SAE 24 1 7/8" - 12 |
*1530JU33
*1530MJU33 |
"A, AL, B, D, S, SS" |
JIS-SAE 33 M 33x2.0 |
*1530JU42
*1530MJU42 |
"A, AL, B, D, S, SS" |
JIS-SAE 42M 42x2.0 |
*1530JU48
*1530MJU48 |
"A, AL, B, D, S, SS" |
JIS-SAE 48 M 48x2.0 |
*F1530
*F1530M
*F1530MZ |
A |
1 1/2" 125lbs FF FLANGE |
| B |
1 1/2" 150lbs FF FLANGE |
| D |
1 1/2" 150lbs RF FLANGE |
| S |
1 1/2" 150lbs RF FLANGE |
| SS |
1 1/2" 150lbs RF FLANGE |
*F1530X
*F1530XM
*F1530XMZ |
S, SS |
1 1/2" 300lbs RF FLANGE |
*F1530X - X15
*F1530 - X15M
*F1530 - X15MZ |
S, SS |
1 1/2" 600lbs RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

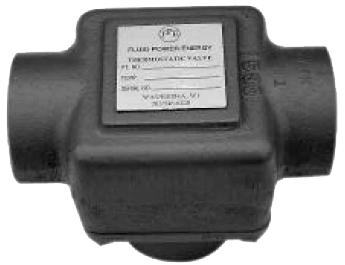

| 1530型 |
|
1530型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
| *2010-1 |
A, AL, B, D, S, SS |
1 1/2" NPT |
| *2010 |
A, AL, B, D, S, SS |
2 NPT |
| *2010-1B |
A, AL, B, D, S, SS |
1 1/2" BSPT |
| *2010B |
A, AL, B, D, S, SS |
2" BSPT |
| *2010-1A |
A, AL, B, D, S, SS |
1 1/2" BSPP |
| *2010A |
A, AL, B, D, S, SS |
2" BSPP |
| *2010J24 |
A, AL, B, D, S, SS |
SAE 24 1 7/8"-12 |
| *2010J32 |
A, AL, B, D, S, SS |
SAE 32 2 1/2-12 |
| *F2010 |
A |
2" 125lbs FF FLANGE |
| B |
2" 150lbs RF FLANGE |
| D |
2" 150lbs RF FLANGE |
| S, SS |
2" 150lbs RF FLANGE |
| *F2010X |
S, SS |
2" 300lbs RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

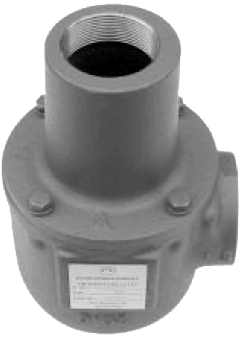

| 2010型 |
|
2010型尺寸参数 |
 |
|
*2012 - 1
*2012 - 1M
*2012 - 1MZ |
"A, B, D, S, SS" |
1 1/2" NPT |
*2012
*2012M
*2012MZ |
"A, B, D, S, SS" |
2" NPT |
*2012J24
*2012J24M
*2012J24MZ |
"A, B, D, S, SS" |
SAE 24 1 7/8" - 12 |
*2012J32
*2012J32M
*2012J32MZ |
"A, B, D, S, SS" |
SAE 32 2 1/2" - 12 |
*F2012
*F2012M
*F2012MZ |
A |
2" 125lbs FF FLANGE |
| B |
2" 150lbs FF FLANGE |
| D |
2" 150lbs FF FLANGE |
| S, SS |
2" 150lbs FF FLANGE |
*F2012X
*F2012XM
*F2012XMZ |
S, SS |
2" 300lbs RF FLANGE |
*F2012 - X5
*F2012 - X15M
*F2012 - X5MZ |
S, SS |
2" 600lbs RF FLANGE |
| *2013 -1 |
"A, B, D, S, SS" |
1 1/2" NPT |
| *2013 |
"A, B, D, S, SS" |
2" NPT |
| *2013J24 |
"A, B, D, S, SS" |
SAE 24 1 7/8" -12 |
| *2013J32 |
"A, B, D, S, SS" |
SAE 32 2 1/2" - 12 |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

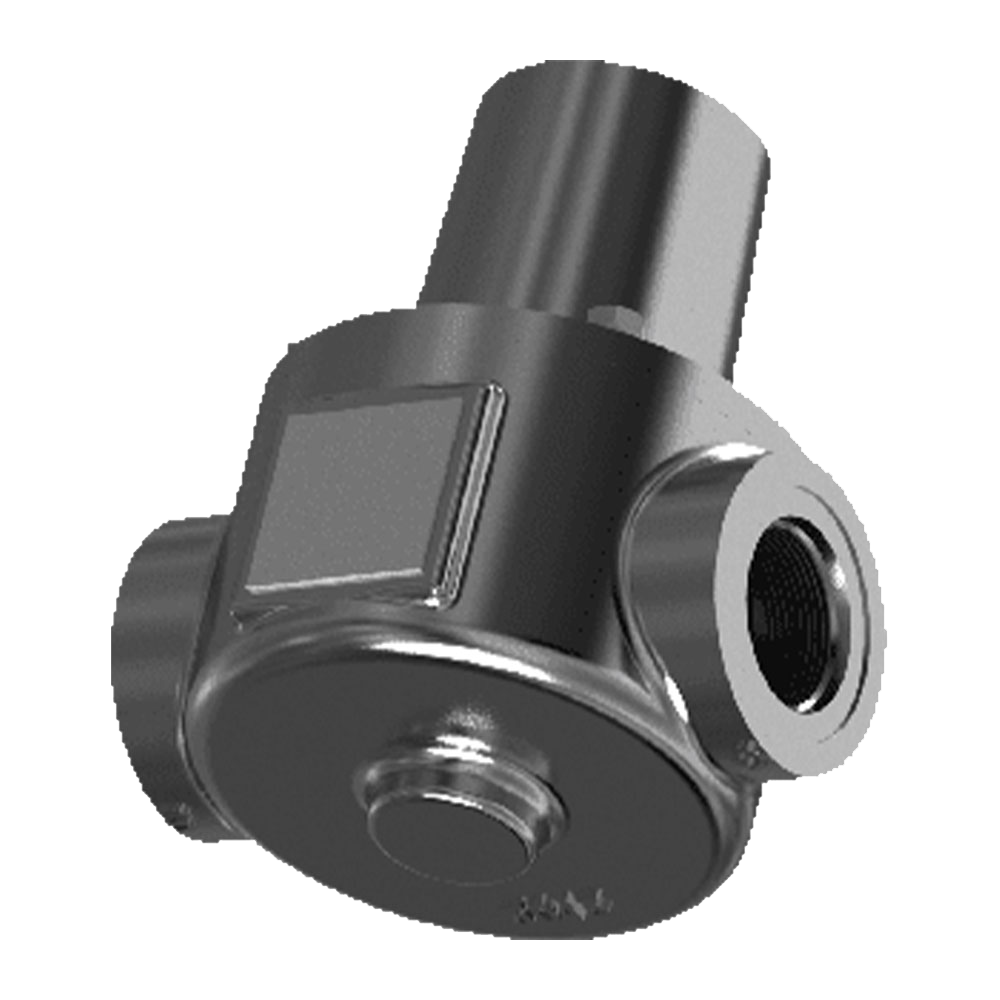

| 2012/2013型 |
|
2012/2013型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*2014 - 1
*2015 - 1 |
S |
1 1/2" SOCKET WELD |
*2014
*2015 |
S |
2" SOCKET WELD |
*2014 - X16
*2015 - X16 |
S |
2" BUTT WELD |
将*替换为阀体材料类型：S=钢 |

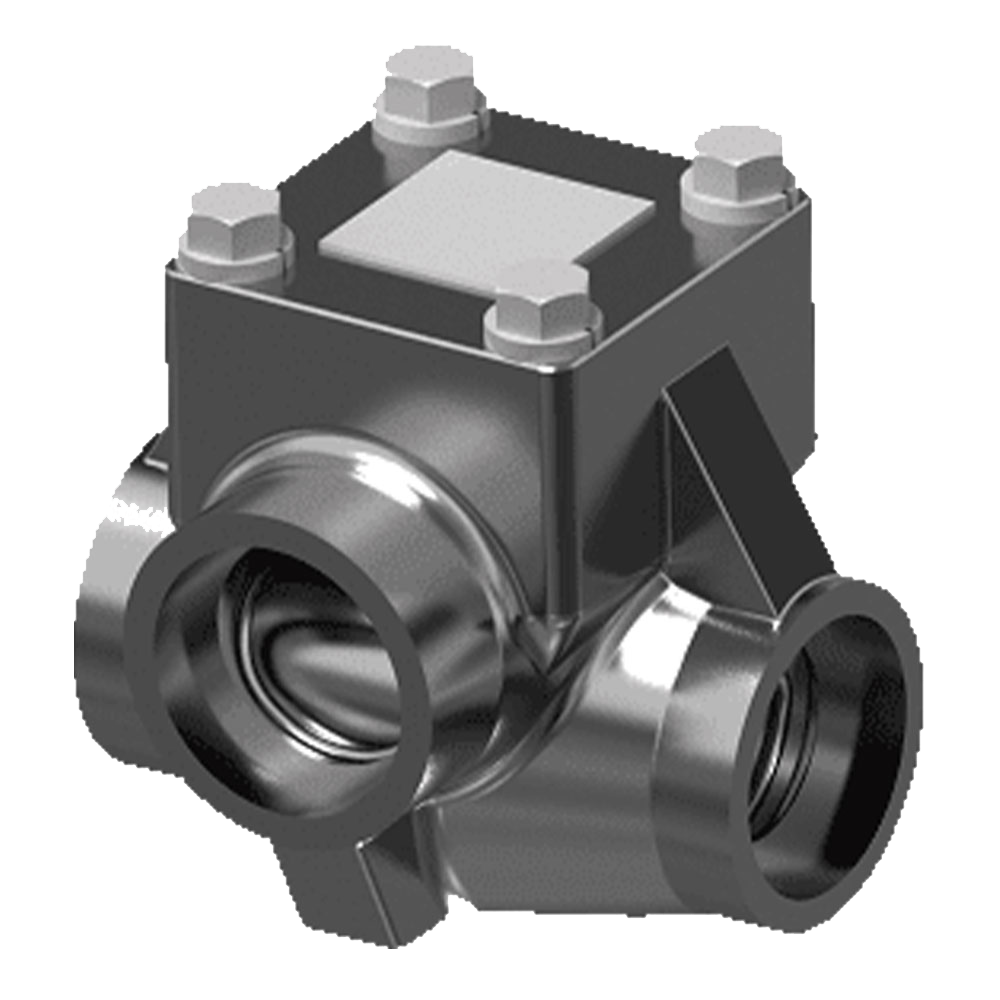

| 2014/2015型 |
|
2014/2015型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
| *2510 |
A |
2 1/2" 125lbs FF FLANGE |
| B |
2 1/2 150lbs FF FLANGE |
| D |
2 1/2" 125lbs FF FLANGE |
| S, SS |
2 1/2" 150lbs RF FLANGE |
| *2510U DN65 RF FLANGE |
A |
PN 10/16 |
| B |
PN 10/16 |
| D |
PN 10/16 |
| S, SS |
PN 10/16 |
*2510X
*2510XM
*2510XMZ |
S, SS |
2 1/2" 300lbs RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |
| 2510型 |
|
2510型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*3010
*3010M
*3010MZ |
A |
3" 125lbs FF FLANGE |
| B |
3" 150lbs FF FLANGE |
| D |
3" 150lbs FF FLANGE |
| S, SS |
3" 150lbs FF FLANGE |
*3010U
*3010UM
*3010UMZ |
A |
80DN PN 10/16 RF FLANGE |
| B |
80DN PN 10/16 RF FLANGE |
| D |
80DN PN 10/16 RF FLANGE |
| S, SS |
80DN PN 10/16 RF FLANGE |
*3010X
*3010XM
*3010XMZ |
S, SS |
3" 300lbs RF FLANGE |
*3010 - X15
*3010 - X15M
*3010 - X15MZ |
S, SS |
3" 600lbs RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

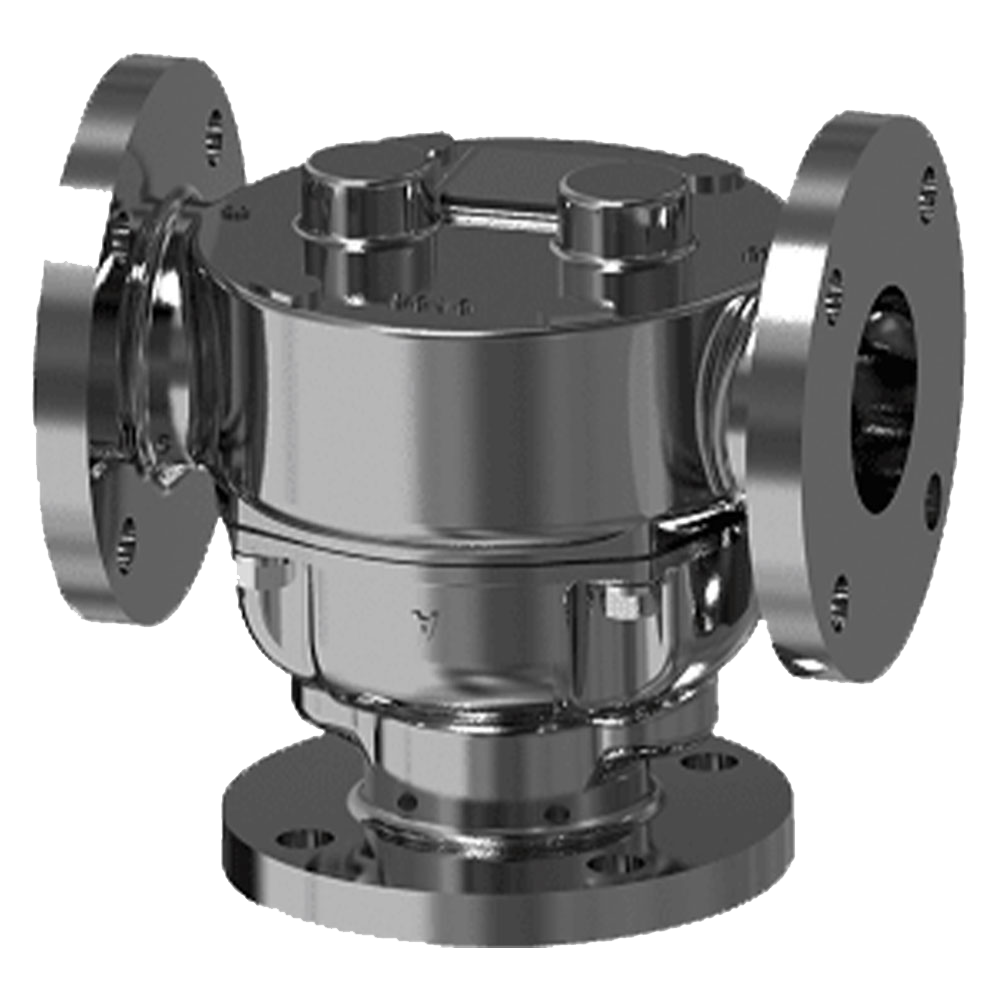

| 3010型 |
|
3010型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*4010
*4010M
*4010MZ |
A |
4" 125lbs FF FLANGE |
| B |
4" 150lbs FF FLANGE |
| D |
4" 150lbs FF FLANGE |
| S, SS |
4" 150lbs FF FLANGE |
*4010U
*4010UM
*4010UMZ |
A |
100DN PN10/16 RF FLANGE |
| B |
100DN PN10/16 RF FLANGE |
| D |
100DN PN10/16 RF FLANGE |
| S, SS |
100DN PN10/16 RF FLANGE |
*4010X
*4010XM
*4010XMZ |
S, SS |
4" 300lbs RF FLANGE |
*4010 - X15
*4010 - X15M
*4010 - X15MZ |
S, SS |
4" 600lbs RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

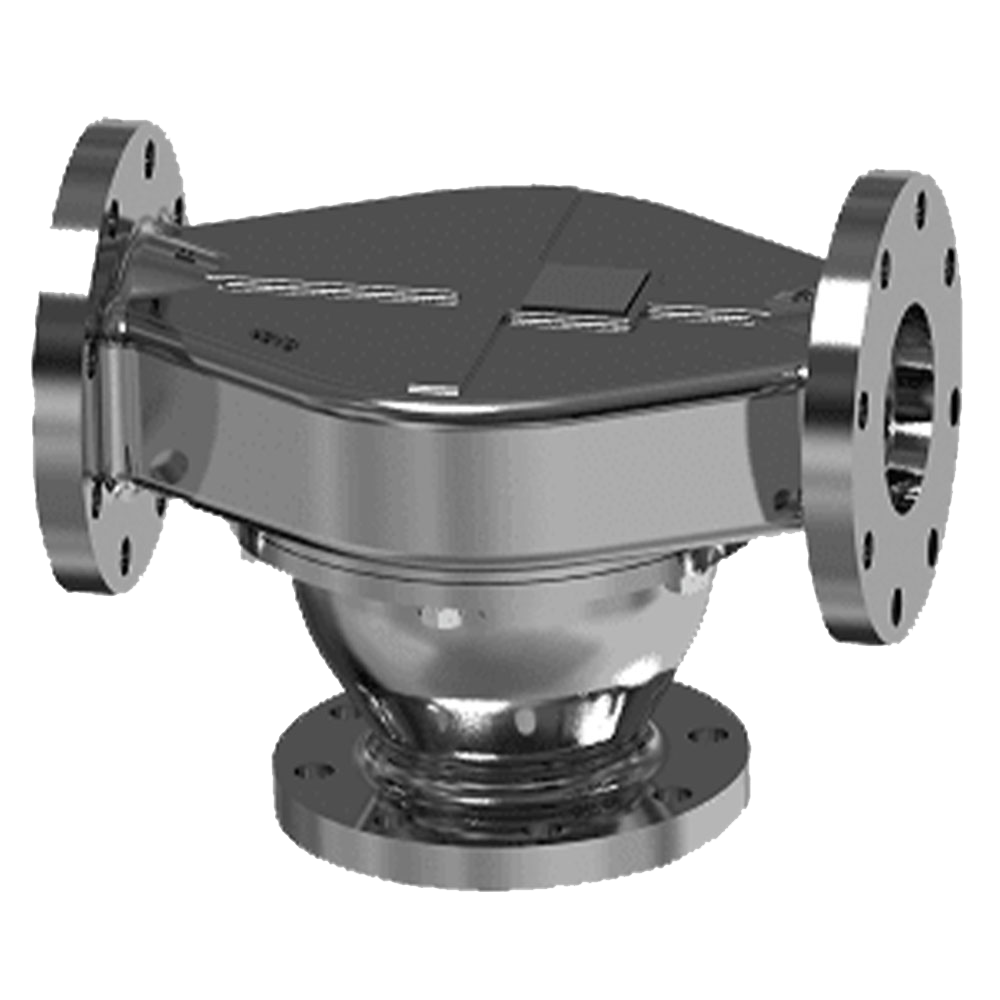

| 4010型 |
|
4010型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*5010
*5010M
*5010MZ |
A |
5" 125lbs FF FLANGE |
| B |
5" 150lbs FF FLANGE |
| D |
5" 150lbs FF FLANGE |
| S, SS |
5" 150lbs FF FLANGE |
*5010U
*5010UM
*5010UMZ |
A |
125DN PN10/16 RF FLANGE |
| B |
125DN PN10/16 RF FLANGE |
| D |
125DN PN10/16 RF FLANGE |
| S, SS |
125DN PN10/16 RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

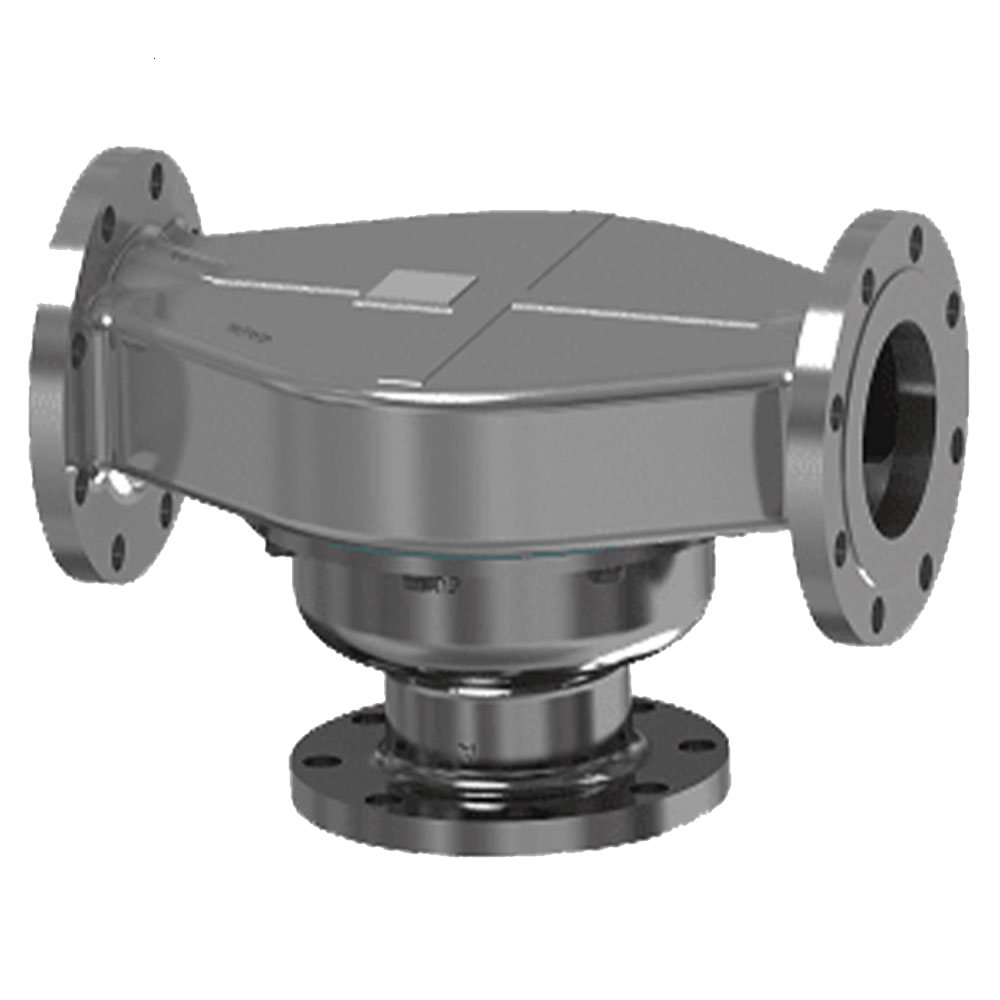

| 5010型 |
|
5010型尺寸参数 |
 |
|
| 型号 |
阀体材料* |
接口尺寸 |
*6010
*6010M
*6010MZ |
A |
6" 125lbs FF FLANGE |
| B |
6" 150lbs FF FLANGE |
| D |
6" 150lbs FF FLANGE |
| S, SS |
6" 150lbs FF FLANGE |
*6010U
*6010UM
*6010UMZ |
A |
150DN PN10/16 RF FLANGE |
| B |
150DN PN10/16 RF FLANGE |
| D |
150DN PN10/16 RF FLANGE |
| S, SS |
150DN PN10/16 RF FLANGE |
将*替换为阀体材料类型：A=铸铁，AL=铝，B=青铜，D=球墨铸铁，S=钢，SS=不锈钢 |

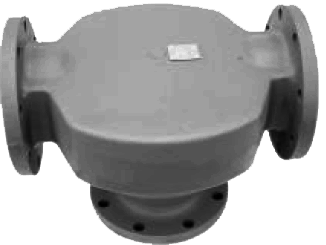

| 6010型 |
|
6010型尺寸参数 |
|
|
